RECOMMENDED FOR: Tank truck, barge, ship, or storage tank transfer of a variety of chemical products. Chem Master? Plus XLPE CR
contains a monofilament helix for suction and crush resistant capability, as well as for routing hoses through tight bends.
Its Modified Cross–linked Polyethylene tube stock is best in class for maintaining a tight seal with stainless steel
fittings, and is designed for cleaning with open–end 50 PSI steam or in a bath containing 10% (NaOH) @ +212°F
(+100°C). Cleaning in place (CIP) methods may be used. Applications include over 950 basic chemicals that are
building blocks for numerous chemicals used in a variety of industries. Reference Gates Chemical Resistance Table for
proper hose selection.
CAUTION: For applications requiring greater than 90% sulfuric acid contact Denver Product Application (303) 744–5070. Chem
Master? Plus XLPE CR is designed to withstand fluid temperatures to +250°F (+121°C); however the rating is
dependent on the specific chemical conveyed. Contact Denver Product Application (303) 744–5070 for any chemical
above +125°F (+52°C). Not recommended for closed steam cleaning.
TEMPERATURE: –40°F to +250°F (–40°C to +121°C) normal service.

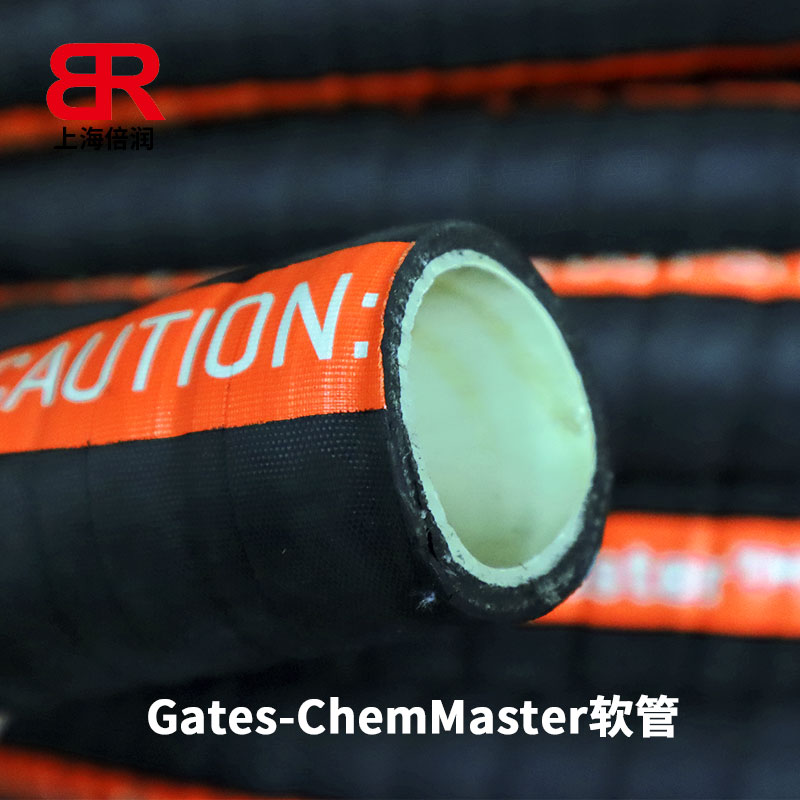

CONSTRUCTION: Tube: Type K (Gatron? Modified Cross–linked Polyethylene.) Tan. High chemical resistance.
?Reinforcement: Synthetic, high tensile textile with monofilament helix and static wire providing crush and
kink–resistance.

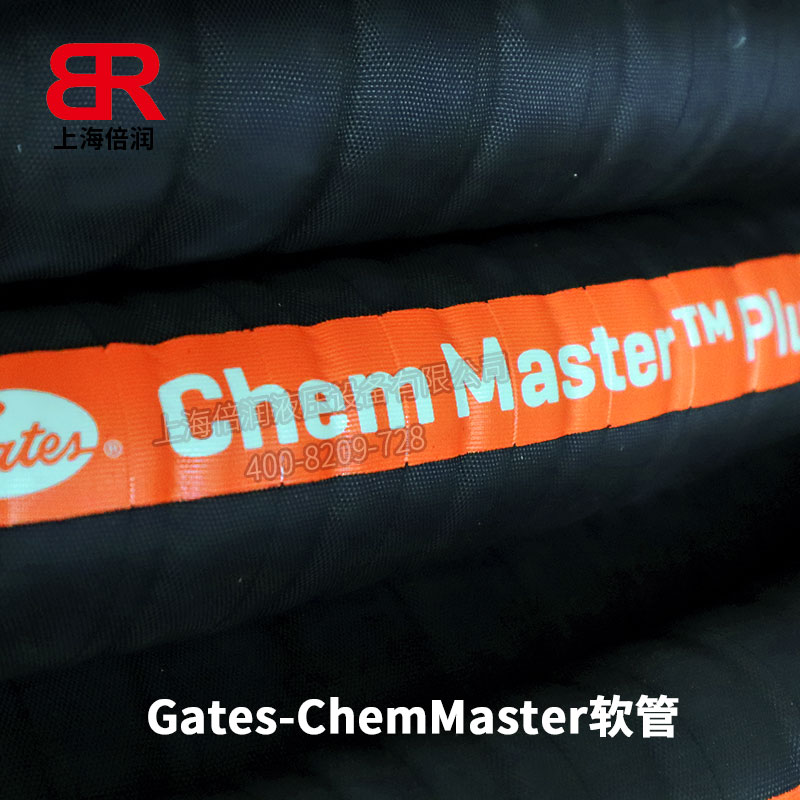

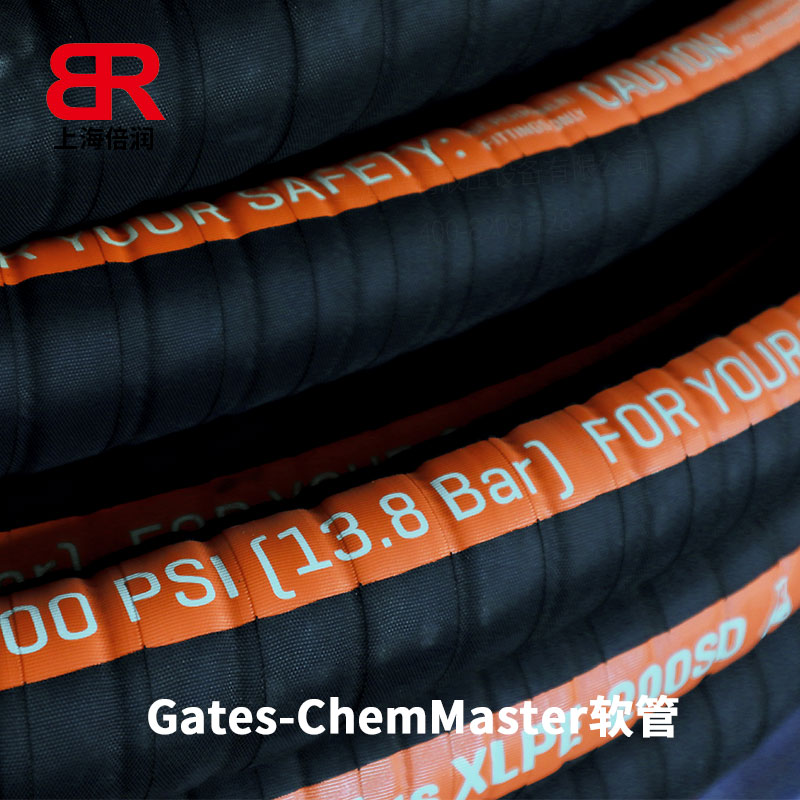

Cover: Type P (EPDM). Black corrugated with orange stripe. Additional color covers available on special
order.
Design Factor: 4:1
COUPLINGS: Use 7, 8, or 49 for fluid temperatures to +125°F (+52°C). Use permanent fittings only 71 or 73 for fluid temperatures
above +125°F (+52°C) and up to +250°F (+121°C) or 80 Gates GSP (2" only). Reference the Hose Coupling Section
推薦用途：用于一系列化學品轉運的罐式車，駁船，儲存罐。Mustang通過一層鋼絲螺旋來滿足完全的吸入要求，以及小彎曲半徑的布線要求。
其交叉結合的改性聚乙烯內膠是目前最好的可保證與不銹鋼接頭“無縫”連接的材料。其設計保證其在“開式”50psi蒸汽下或者10%(NaOH)100°C
的噴淋下的清洗。必須使用在位清潔（CIP）方式。不推薦用于“閉式蒸汽”清洗。可用于超過950種基礎化學物質，這些物質是很多工業領域合
成數量眾多的化學品的基體。請參照蓋茨化學介質兼容性表確定的軟管選型。
注意事項：如需用于含超過90%硫酸的應用，請聯系當地蓋茨業務代表。
溫度：常規應用下-40°C~+121°C.盡量Mustang是按照使用溫度+121°C精心設計的，但是具體的可使用溫度還取決于輸送的化學介質。用于任
何高于+52°C的化學物質，請聯系當地蓋茨業務代表。
內膠層：K型鞣革，強耐化學腐蝕。
增強層：合成高強度棉線編織及鋼絲螺旋。
外膠層：P型，黑色或綠色波紋狀外表上有橙色螺旋色帶。可根據定制提供藍色，紅色及黃色外膠。
