RECOMMENDED FOR: Transfer of milk, juice, beer, soft drinks, pharmaceuticals, cosmetics or water–based products requiring a FDA sanitary
hose. Also suitable for many dry bulk products via suction, pneumatic or gravity where a sanitary hose is required.
TEMPERATURE: –40°F to +230°F (–40°C to +110°C) continuous service.
CONSTRUCTION: Tube: Type S (Sanitron?). White.
Reinforcement: Synthetic, high tensile textile with static–conductive filament; resilient monofilament helix providing
crush and kink–resistance.
Cover: Type P (EPDM). White or gray with burgundy stripe. Additional color covers available on special
order.
Design Factor: 4:1

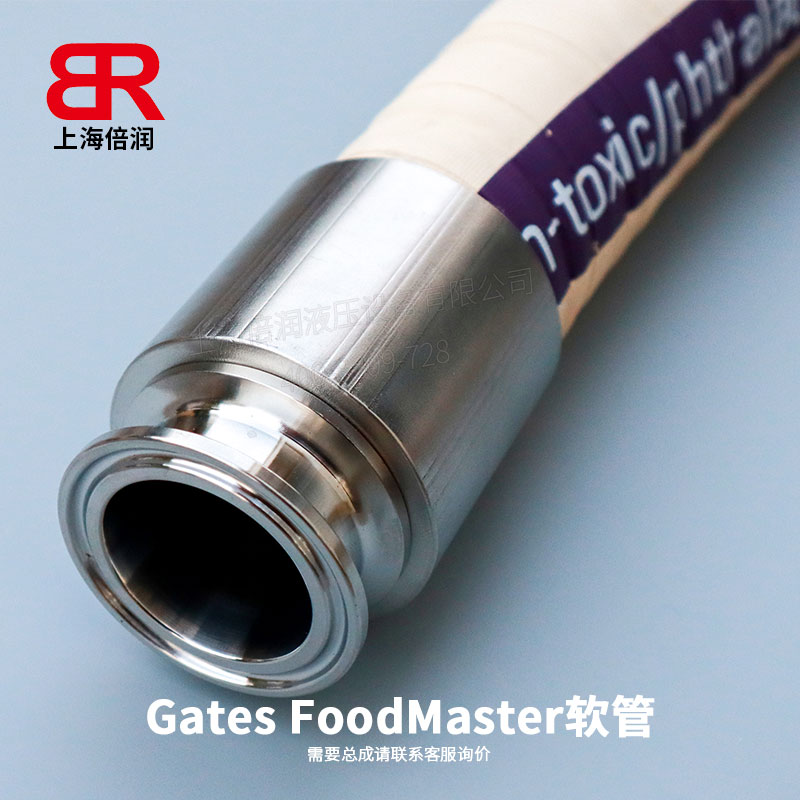

COUPLINGS: 1 or stainless steel, 8 or stainless steel, 34, 71. Reference the Hose Coupling Section.
STANDARDS: Meets FDA requirements, 3A–Class 3 and USDA
牛奶 果汁 飲料 啤酒 醫藥 化妝品輸送管
